Eliminating plosive

Thank you. I would like to start with that because this forum has been a big help. I’ve been lurking, practicing and learning for a little while now and so many people here have been so generous with their time and talent. This is my first post. Again, thank you.

Equipment info:
Windows 10
Audacity 2.3.2
Rode NT1-A mic with pop shield
Icicle XLR to USB converter/preamp

Please pardon and correct me if I make a mistake with terms, info, etc, this is a fairly new world for me.

My issue:
I have what I believe is called a plosive in what is to be my first job narrating. The same or similar words are fine in the other parts of the work that I’ve listened to so far. My guess is that I may have turned my head slightly up for a few moments, thus pointing my mouth more directly at the mic creating the plosive. I may rerecord the sentence but I am trying to learn as much as possible so I would like to know if it is possible to eliminate the plosive sound with audacity.

I searched the forums [https://forum.audacityteam.org/t/sound-like-a-click-in-my-voice-recordings-solved/39264/7] and tried Paul-L’s De-Clicker with the settings as is [“default settings”?] after selecting about one half second of audio around the plosive. It didn’t seem to help.

I also found some advice in the Mac forums [is it taboo to mention mac here :laughing: ?] [https://forum.audacityteam.org/t/sound-like-a-click-in-my-voice-recordings-solved/39264/7]. The problem here is that there is a setting [user presets > dethud] which I am unable to access - “user presets” is grayed out. Please see image
De-Thud settings on Paul-L's De-Clicker plugin.png
and my screenshot
De-Clicker my screenshot.png
.

A sample of the offending audio

.

Thanks in advance.

You may be a candidate for Microphone Management. Place the active grill of the microphone even with your noise or higher.

If that’s still not enough, try oblique placement.

https://forum.audacityteam.org/t/audio-sample-noise-issues-2-3-2/54239/22

That’s also what this is.

P-Pops go straight in front of your mouth or downward. Don’t put the microphone there.

That also frees up the space directly in front of you for your script.

You can struggle with software solutions if you want, but I developed Oblique Placement when I couldn’t get anything else to work.


Behold Joe Rogan. His podcasts are a festival of P-Popping and lip distortion.

That’s called swallowing the microphone. When you get to be Joe Rogan, you can do that, too.

Koz

You can also be plain too close. If you’re using a pop filter, you shouldn’t be any closer than about a power fist.

Koz

There are two types of pop filter. The one shown above is the fabric one with stiff but stretchy nylon over it. That one works by refusing to stretch past a certain point P-Popps have long wind excursions.

There’s a second version with rigid screening and carefully tuned holes.

That one works by refusing to pass any more air than a set amount. P-Popps try to move a lot of air. That one comes with a caution. If you tap it with a pencil, it can’t make any bell, ting or chime noises. Any noise it makes will be added to your voice.

Koz

Thanks Koz. I have the fabric filter that came with the mic.

Those are (my) user presets: the plugin does not come with those, hence empty, (greyed out).
To have DeThud you have to dial-in the values shown in the picture then save it yourself as a preset.

Having said that I don’t think you have a plosive thud on the “p” of “picture”,
It’s the “a” immediately before which has a high-pitched (~9.5kHz) rattle.

That can be treated with De-Clicker’s sister plugin De-esser* …

DeEsser settings used.png
[ * although it’s not a sibilance problem, something is rattling with a resonant frequency of ~9.5kHz ]

I have the fabric filter that came with the mic.

Cool. Do you have the boom microphone stand?

If you’re recording with the microphone on your table or desk, that may be where some of the noises are coming from. That zig-zag spider thing on the back of the mic prevents that, but it doesn’t prevent sound reflections from a bare desk.

Note in the picture, there’s a heavy furniture moving pad on the desk and one on the wall.

You can also inspect your environment and see if there’s anything that you can tap with a pencil and make ringing noises. Wine glasses are famous for this. You can have lampshades of glass or ceramic and they can ring. Do you have the microphone propped up on a coffee mug? Don’t do that.

If you do find a software solution, you will need to remember to apply it to every recording, forever. That’s why making a studio is important.

Koz

Thanks for your help Trebor.

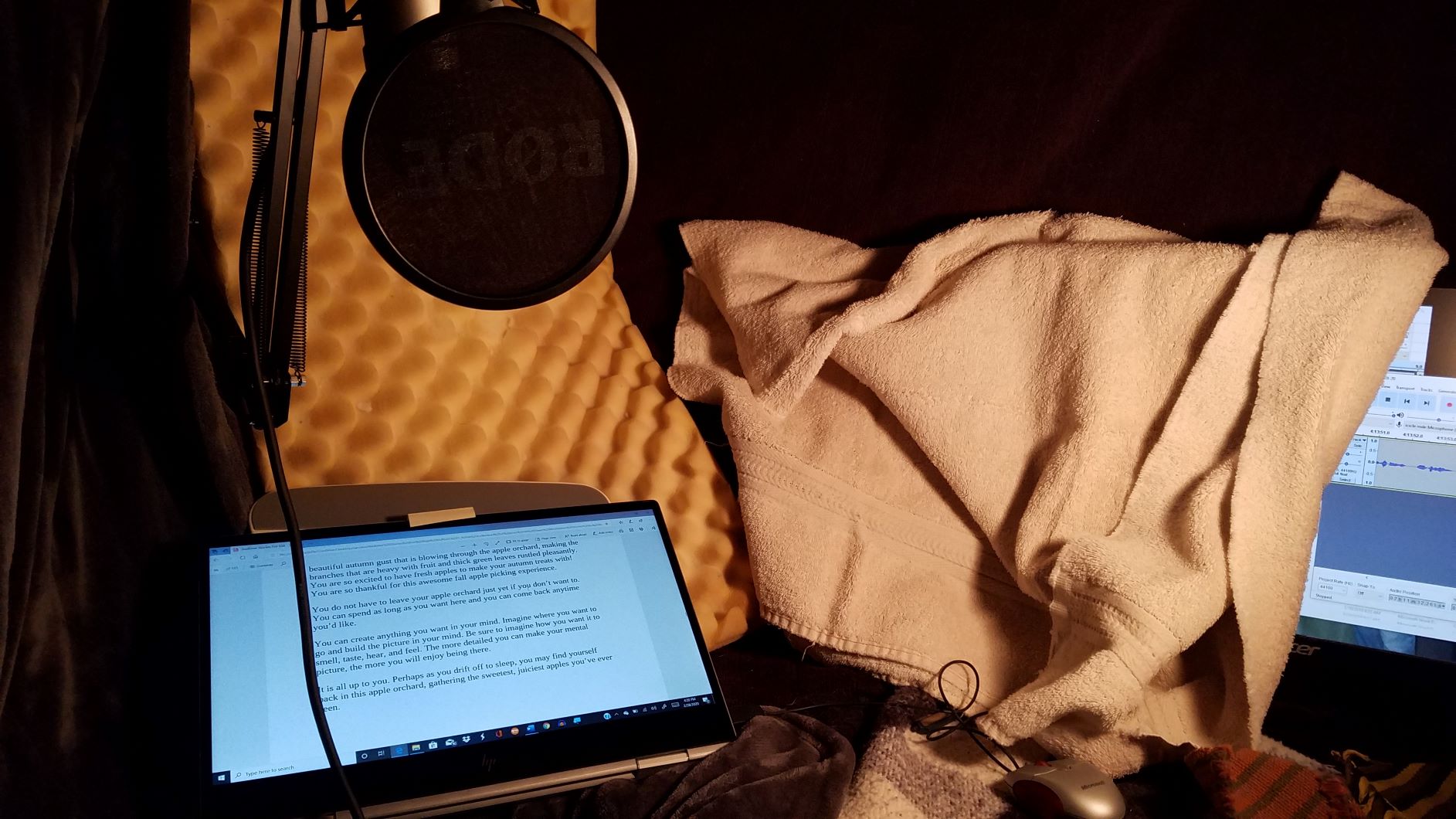

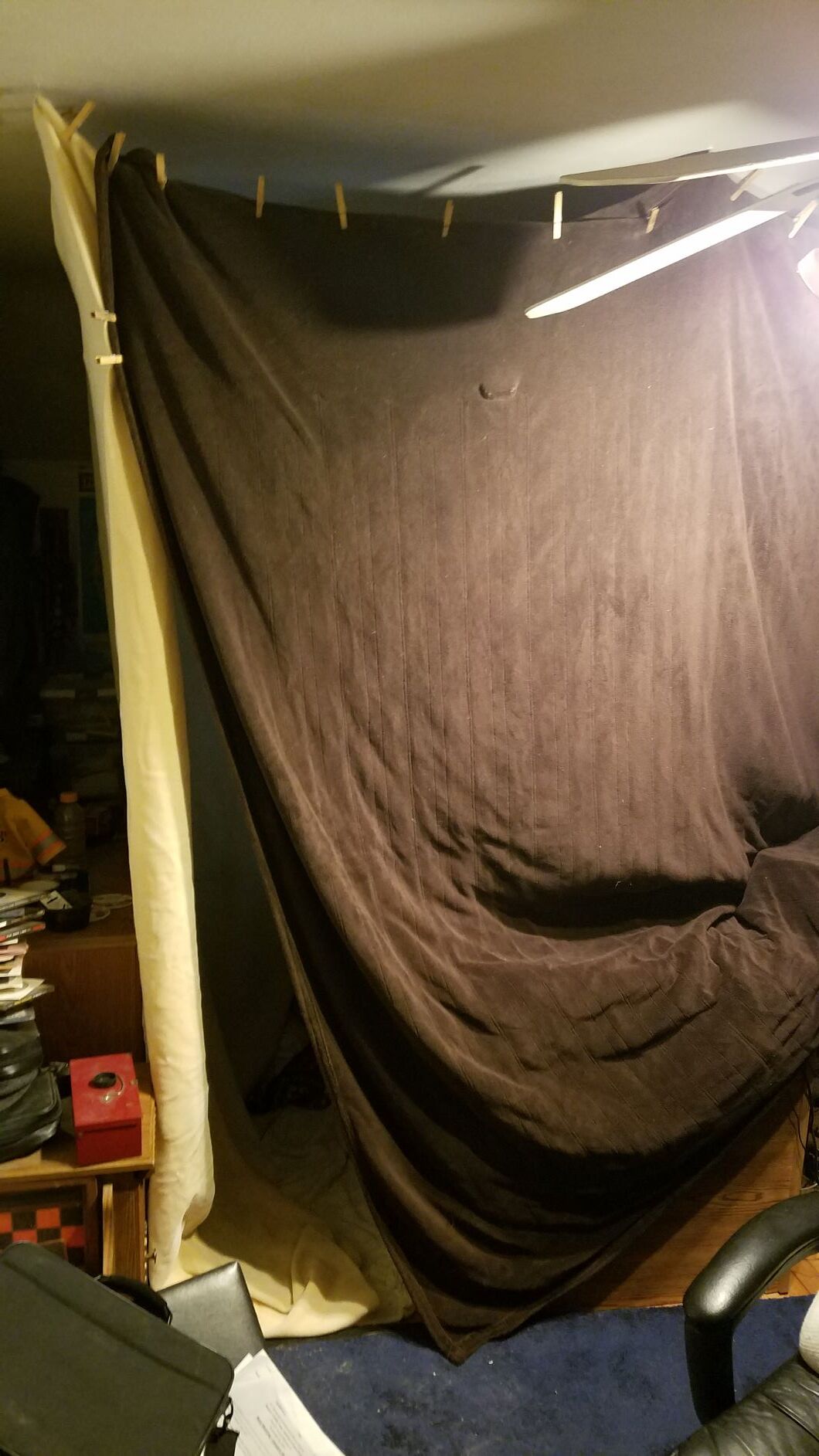

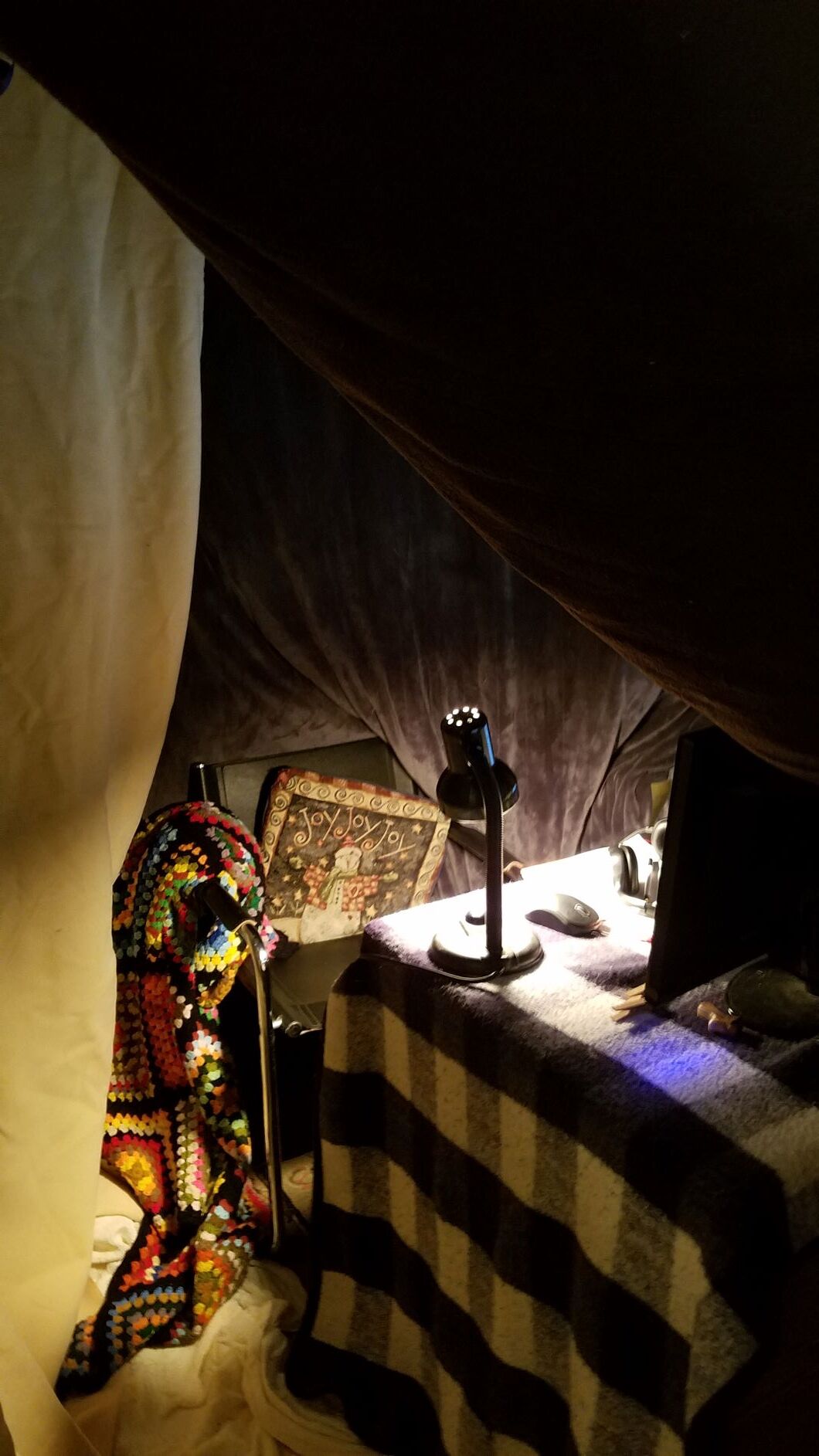

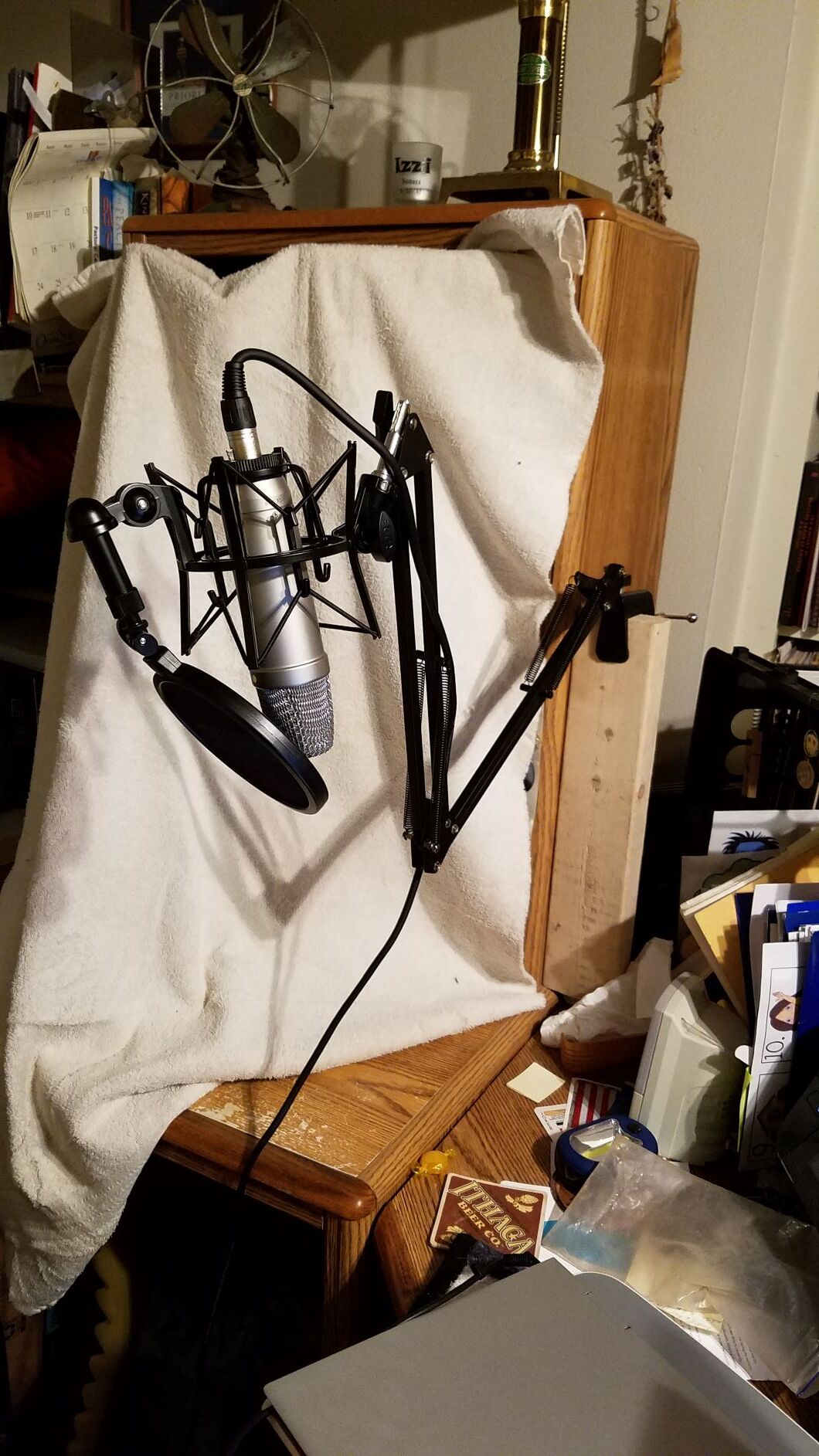

Koz, I finally have some pictures of my home setup. My mic ‘stand’ is the type that came with my original mic, a blue snowball ice [which I probably didn’t do enough research on before I bought it and didn’t care for the sound so I switched to the rode pretty quickly]. The pic with the mic stand is shown exposed and with a towel behind it just for contrast. I record on my desk top [and cover part of the screen with a towel for what I hope is some sound proofing]. Not very good pics but it is tough to inside for pictures, so the outside view is for perspective. I basically hang heavy blankets from rope on hooks attached to the ceiling.

Greetings

I hope you have found a good solution to the plosive issue.

A while back, we created this video for our partner broadcasters. This offers yet another (post production) solution.

I hope it’s helpful.

https://onlineradiotraining.com/audacity-one-click-pop-removal

Kind regards

James

Using “Bass and Treble” to remove plosives will have the undesirable side effect of remove lower tones from the voice, making the voice sound rather “thin”. Better to use the “Low Roll-off for speech” setting in the “Filter Curve EQ” effect.

Hi. I totally agree, if the bass removal is applied to the entire voice recording, the voice will sound very thin.

With this technique, just each tiny segment of plosive has the effect applied. This is useful if there are just a few instances of ‘popping,’ which ruin an otherwise excellent or valuable recording.

Thanks for the heads up about the low roll off effect.
