How to upgrade Audacity 1.3.13 to 2.0.6

Post by rcavictor » Tue Dec 30, 2014 4:49 am

If I upgrade 1.3.13 to 2.0.6 will the 1.3.13 audio files function with 2.0.6 version?
What are the steps to upgrade?
For future upgrades is there a notification feature for new versions?
Top
steve
Site Admin
Posts: 80677
Joined: Sat Dec 01, 2007 11:43 am
Operating System: Linux *buntu

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by steve » Tue Dec 30, 2014 11:02 am

rcavictor wrote:If I upgrade 1.3.13 to 2.0.6 will the 1.3.13 audio files function with 2.0.6 version?
Yes, Audacity 2.x is backwardly compatible with 1.3.x projects.
rcavictor wrote:What are the steps to upgrade?
Uninstall the 1.3.13 version first, then install Audacity 2.0.6 using the recommended installer.
Because it is such a big jump from 1.3.13 to 2.0.6 I would recommend that you select the option to "reset preferences" during the installation.

For future 2.x updates you will be able to just install over the top of the previous 2.x version.
rcavictor wrote:For future upgrades is there a notification feature for new versions?
You can register your email address at the bottom of the Audacity home page to be notified of new releases: http://audacityteam.org/
9/10 questions are answered in the FREQUENTLY ASKED QUESTIONS (FAQ)
Top
rcavictor
Posts: 28
Joined: Thu Aug 29, 2013 12:54 am
Operating System: Please select

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by rcavictor » Tue Dec 30, 2014 5:05 pm

As far as basic operational use, is there a big difference between 1.3.13 and 2.0.6 versions?
The reason I ask is because, when I plug in the HDMI cable and add a HDTV to my laptop. (duplicate screen mode)
For some reason the 1.3.13v does not detect audio, once I switch to laptop screen only, 1.3.13v detects audio.
The windows 7 volume mixer shows the audio source but 1.3.13v does not detect it.
It has something to do with switching to duplicate screen mode, using HDMI
Do you think 2.0.6 version would correct this problem.
Top
Gale Andrews
Quality Assurance
Posts: 41761
Joined: Fri Jul 27, 2007 12:02 am
Operating System: Windows 10

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by Gale Andrews » Tue Dec 30, 2014 6:49 pm

rcavictor wrote:As far as basic operational use, is there a big difference between 1.3.13 and 2.0.6 versions?
The reason I ask is because, when I plug in the HDMI cable and add a HDTV to my laptop. (duplicate screen mode)
For some reason the 1.3.13v does not detect audio, once I switch to laptop screen only, 1.3.13v detects audio.
The windows 7 volume mixer shows the audio source but 1.3.13v does not detect it.
It has something to do with switching to duplicate screen mode, using HDMI
Do you think 2.0.6 version would correct this problem.
I don't think so, unless it was a bug in the third-party PortAudio audio interface we use which is now fixed.

Even if not, it would still be much better to upgrade to 2.0.6, which has many bug fixes and new features compared to 1.3.13. Plus, there is no technical support for 1.3 versions any longer.

Do I take it you are trying to record the HDTV? Have you tried both MME and Windows DirectSound host in Device Toolbar?

Have you tried Transport > Rescan Audio Devices in Audacity after switching to duplicate screens? Does using only the HDTV screen give the same problem?


Gale
________________________________________FOR INSTANT HELP: (Click on Link below)
* * * * * Tips * * * * * Tutorials * * * * * Quick Start Guide * * * * * Audacity Manual
Top
rcavictor
Posts: 28
Joined: Thu Aug 29, 2013 12:54 am
Operating System: Please select

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by rcavictor » Tue Dec 30, 2014 7:45 pm

Gale Andrews wrote:Do I take it you are trying to record the HDTV?
No, Just the audio from the internet.
All I'm doing is sending audio/video signal via HDMI from computer to the HDTV.
When the computer switches to duplicate screen mode.
Audio to Audacity cuts off.
Audio is seen on volume mixer and heard on HDTV
Gale Andrews wrote:Have you tried both MME and Windows DirectSound host in Device Toolbar?
Yes, no change
Gale Andrews wrote:Have you tried Transport > Rescan Audio Devices in Audacity after switching to duplicate screens?
Yes, no change
Gale Andrews wrote:Does using only the HDTV screen give the same problem?
Yes, no change

Audio is seen on the Audacity VU meter until the computer switches to duplicate screen mode when using HDMI cable.
Unpluging HDMI cable from computer restores audio to Audacity VU meter.
Strange?
Top
kozikowski
Forum Staff
Posts: 68901
Joined: Thu Aug 02, 2007 5:57 pm
Operating System: macOS 10.13 High Sierra

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by kozikowski » Tue Dec 30, 2014 8:11 pm

You may be experiencing part of the HDMI Quality Assurance (copy protection) service. When you watch a movie, it's made to go exclusively up the HDMI cable to the display device and make no stops along the way. Branches and other services are locked out.

However, you may not need that just to record YouTube.

http://manual.audacityteam.org/o/man/tu ... puter.html

Koz
Top
Gale Andrews
Quality Assurance
Posts: 41761
Joined: Fri Jul 27, 2007 12:02 am
Operating System: Windows 10

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by Gale Andrews » Tue Dec 30, 2014 9:43 pm

What happens if you play a song in Windows Media Player with the HDMI output as default playback device in Windows Sound? Does the TV get the song audio with a) laptop screen only b) duplicated screens or c) HDTV only?

If possible, can you grab the information from Help > Audio Device Info... top of the Audacity menus for situation a)? Right-click in the Info window, Select All, CTRL + C to copy, press the Code button above the message window here, then paste.

Then close the Info window, change the display to duplicated, Transport > Rescan Audio Devices, open Audio Device Info... and copy/paste that info here. Finally change the display to HDTV only, do another rescan of audio devices then paste another set of info here. Please make clear which set of information is for a), b) and c).

Thanks.

Gale
________________________________________FOR INSTANT HELP: (Click on Link below)
* * * * * Tips * * * * * Tutorials * * * * * Quick Start Guide * * * * * Audacity Manual
Top
rcavictor
Posts: 28
Joined: Thu Aug 29, 2013 12:54 am
Operating System: Please select

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by rcavictor » Wed Dec 31, 2014 4:28 am

Gale Andrews wrote:What happens if you play a song in Windows Media Player with the HDMI output as default playback device in Windows Sound? Does the TV get the song audio with a) laptop screen only b) duplicated screens or c) HDTV only?

A) laptop screen only --- No audio on HDTV, Audio on Laptop
B) duplicated screens -- Audio on HDTV only
C) HDTV only ------------ Audio on HDTV only

Audio Device Info for situation A below:

Code: Select all

 Audio Device Info for situation A
==============================
Default capture device number: 1
Default playback device number: 3
==============================
Device ID: 0
Device name: Microsoft Sound Mapper - Input
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 1
Device name: Stereo Mix (Realtek High Defini
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 2
Device name: Microsoft Sound Mapper - Output
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 3
Device name: Speakers (Realtek High Definiti
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 4
Device name: Primary Sound Capture Driver
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 5
Device name: Stereo Mix (Realtek High Definition Audio)
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 6
Device name: Primary Sound Driver
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 7
Device name: Speakers (Realtek High Definition Audio)
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Selected capture device: 1 - Stereo Mix (Realtek High Defini
Selected playback device: 3 - Speakers (Realtek High Definiti
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Available mixers:
==============================
Available capture sources:
0 - Master Volume
==============================
Available playback volumes:
0 - CD Audio
1 - Master Volume
==============================
Capture volume is native
Playback volume is native
Audio Device Info for situation B below:

Code: Select all

 Audio Device Info for situation B
==============================
Default capture device number: 1
Default playback device number: 3
==============================
Device ID: 0
Device name: Microsoft Sound Mapper - Input
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 1
Device name: Stereo Mix (Realtek High Defini
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 2
Device name: Microsoft Sound Mapper - Output
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 3
Device name: ATI HDMI Output (ATI High Defin
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 4
Device name: Speakers (Realtek High Definiti
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 5
Device name: Primary Sound Capture Driver
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 6
Device name: Stereo Mix (Realtek High Definition Audio)
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 7
Device name: Primary Sound Driver
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 8
Device name: ATI HDMI Output (ATI High Definition Audio Device)
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 9
Device name: Speakers (Realtek High Definition Audio)
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Selected capture device: 1 - Stereo Mix (Realtek High Defini
Selected playback device: 3 - ATI HDMI Output (ATI High Defin
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
Unable to open Portmixer
Audio Device Info for situation C below:

Code: Select all

Audio Device Info for situation C
==============================
Default capture device number: 1
Default playback device number: 3
==============================
Device ID: 0
Device name: Microsoft Sound Mapper - Input
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 1
Device name: Stereo Mix (Realtek High Defini
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 2
Device name: Microsoft Sound Mapper - Output
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 3
Device name: ATI HDMI Output (ATI High Defin
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 4
Device name: Speakers (Realtek High Definiti
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 5
Device name: Primary Sound Capture Driver
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 6
Device name: Stereo Mix (Realtek High Definition Audio)
Host name: MME
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 7
Device name: Primary Sound Driver
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 8
Device name: ATI HDMI Output (ATI High Definition Audio Device)
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 9
Device name: Speakers (Realtek High Definition Audio)
Host name: MME
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Selected capture device: 1 - Stereo Mix (Realtek High Defini
Selected playback device: 3 - ATI HDMI Output (ATI High Defin
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
Unable to open Portmixer
Audio Device Info for situation B with Audacity settings as follows:
Audio Host - Windows Direct Sound
Output Device - Primary Sound Driver
Input Device- Primary Sound Capture Driver
below:

Code: Select all

Audio Device Info for situation B with Audacity settings as follows:
Audio Host - Windows Direct Sound
Output Device - Primary Sound Driver
Input Device - Primary Sound Capture Driver
==============================
Default capture device number: 1
Default playback device number: 3
==============================
Device ID: 0
Device name: Microsoft Sound Mapper - Input
Host name: Windows DirectSound
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 1
Device name: Stereo Mix (Realtek High Defini
Host name: Windows DirectSound
Input channels: 2
Output channels: 0
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
==============================
Device ID: 2
Device name: Microsoft Sound Mapper - Output
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 3
Device name: ATI HDMI Output (ATI High Defin
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 4
Device name: Speakers (Realtek High Definiti
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.200000
Low Output Latency: 0.200000
High Input Latency: 0.400000
High Output Latency: 0.400000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 5
Device name: Primary Sound Capture Driver
Host name: Windows DirectSound
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 6
Device name: Stereo Mix (Realtek High Definition Audio)
Host name: Windows DirectSound
Input channels: 2
Output channels: 0
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
==============================
Device ID: 7
Device name: Primary Sound Driver
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 8
Device name: ATI HDMI Output (ATI High Definition Audio Device)
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Device ID: 9
Device name: Speakers (Realtek High Definition Audio)
Host name: Windows DirectSound
Input channels: 0
Output channels: 2
Low Input Latency: 0.000000
Low Output Latency: 0.000000
High Input Latency: 0.000000
High Output Latency: 0.000000
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
==============================
Selected capture device: 5 - Primary Sound Capture Driver
Selected playback device: 7 - Primary Sound Driver
Supported Rates:
    8000
    9600
    11025
    12000
    15000
    16000
    22050
    24000
    32000
    44100
    48000
    88200
    96000
    192000
Unable to open Portmixer
Playback Devices:
(Ati HDMI Output, Ati High Definition Audio Device, Default Device) HDCP not supported
(Speakers - Realtek High Definition Audio, Default Multimedia Device)

Recording Devices:
Mic at front panel (pink) Realtek High Definition Audio, not plugged in
Microphone - Realtek High Definition Audio, Disabled
Stereo Mix - Realtek High Definition Audio, Default Multimedia Device

Realtek Audio Manager, Is disabled when HDMI is used, i.e. sound effects processor (EQ) does not effect audio.
Note: The EQ in the Windows Media Player stays enabled when using HDMI interface.

Thanks,
Top
Gale Andrews
Quality Assurance
Posts: 41761
Joined: Fri Jul 27, 2007 12:02 am
Operating System: Windows 10

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by Gale Andrews » Wed Dec 31, 2014 1:16 pm

Thanks for all the detail.

So when you have the TV connected to the HDMI output, but you choose to send the display to the laptop only, the HDMI audio output device is not available in Windows (you don't see HDMI audio in the Playback tab in Windows Sound)?

That's what it looks like from your Audio Device Info in situation A).

For B) and C) do you see "Error opening sound device" in Audacity? Or does the playback cursor move?


Gale
________________________________________FOR INSTANT HELP: (Click on Link below)
* * * * * Tips * * * * * Tutorials * * * * * Quick Start Guide * * * * * Audacity Manual
Top
rcavictor
Posts: 28
Joined: Thu Aug 29, 2013 12:54 am
Operating System: Please select

Re: How to upgrade Audacity 1.3.13 to 2.0.6

Post by rcavictor » Thu Jan 01, 2015 6:38 am

Gale Andrews wrote:So when you have the TV connected to the HDMI output, but you choose to send the display to the laptop only, the HDMI audio output device is not available in Windows (you don't see HDMI audio in the Playback tab in Windows Sound?
That's what it looks like from your Audio Device Info in situation A). Gale

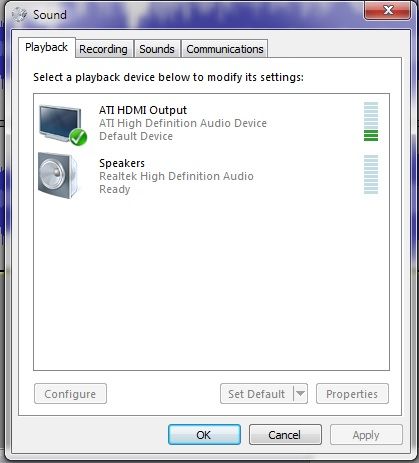

That is correct, Here is a Screen shot of Windows Sound Playback device window.
The vertical VU meter is not visible to the right of the ATI HDMI Output device.

If I plug in the HDMI cable into the laptop, it looks like this Screen shot.
Once the HDMI interface and HDTV completes their handshake, the vertical VU meter appears to the right of the ATI HDMI Output device.
The laptop display goes black for a second when switching over to HDMI interface and duplicate screen mode.
When plugging in HDMI cable the laptop senses the HDTV communication signal and switches over to HDMI interface and duplicate screen mode automatically.
By pressing f4 I can manually switch display devices.
With the Audacity Output Device drop down, I can switch audio from HDTV speakers to laptop speakers.

Here is a Screen Shot of Windows Sound Recording device window, when HDTV is added.
Audio is only present with laptop display Screen Shot
Gale Andrews wrote:For B) and C) do you see "Error opening sound device" in Audacity? Or does the playback cursor move?
No,
Audacity Playback through HDMI functions correctly. cursor moves.
Audio is heard from the HDTV speakers.
Only time I see "Error opening sound device" is when I unplug HDMI cable and fail to Rescan Audio Devices. After rescan error is corrected.
I also discovered when using HDMI the laptop Audio-out (headphone) jack is disabled.
My hunch is, the sound card must be blocking audio to windows sound when HDMI is used. At least for this laptop.
What is interesting, the laptop does not have a High definition Blu-ray disc drive. Just DVD
Any Ideas,
Thanks
Top
Post Reply

Return to “Windows”
